Disc brake caliper and rotor compatibility C-461

2.2 mm thickness rotor

Brake caliper	Brake pad material	Pad type	Rotor
Brake caliper	Brake pad material	Pad type	220 mm	200 mm	180 mm	160 mm	140 mm
BR-M9220 BR-M8220 BR-M6220 BR-MT620	Metal / Resin	Narrow	RT-CL750 RT-6B750	RT-CL750 RT-6B750	-	-	-

Standard thickness rotor

Brake caliper	Brake pad material	Pad type	Rotor
Brake caliper	Brake pad material	Pad type	220 mm	203 mm	180 mm	160 mm	140 mm
BR-M92004 BR-M92207 BR-M91004 BR-M91105 BR-M91207 BR-M8200 BR-M82207 BR-M8100 BR-M81106 BR-M8120 BR-M8000 BR-M8020 BR-M7100 BR-M71106 BR-M7120 BR-M62007 BR-M62207 BR-M6100 BR-M6120 BR-MT8056 BR-MT6007 BR-MT6207 BR-MT520 BR-MT420 BR-M820 BR-U8000 BR-U80104 BR-U8020	Metal / Resin	Narrow	SM-RT66 SM-RT64	RT-CL900 RT-CL800 RT-CL700 RT-MT900 RT-MT800 SM-RT99 SM-RT81 SM-RT70 RT-EM9101 RT-EM9001 RT-EM8101 RT-CL3002 SM-RT64 SM-RT302 RT-EM6001 RT-EM30012 RT-MT905 SM-RT86 SM-RT76 SM-RT66	RT-CL900 RT-CL800 RT-CL700 RT-MT900 RT-MT800 SM-RT99 SM-RT81 SM-RT70 RT-EM9101 RT-EM9001 RT-EM8101 RT-EM8001 RT-CL3002 SM-RT64 SM-RT542 SM-RT302 SM-RT102 RT-EM6001 RT-EM30012 RT-MT905 SM-RT86 SM-RT76 SM-RT66 SM-RT562 SM-RT26*2	RT-CL900 RT-CL800 RT-CL700 RT-MT900 RT-MT800 SM-RT900 SM-RT800 SM-RT99 SM-RT81 SM-RT70 RT-EM9101 RT-EM9001 RT-EM8101 RT-EM8001 RT-CL3002 SM-RT64 SM-RT542 SM-RT302 SM-RT102 RT-EM6001 RT-EM30012 SM-RT86 SM-RT76 SM-RT66 SM-RT562 SM-RT26*2 SM-RTC60	RT-CL900 RT-CL800 RT-CL700 RT-MT900 RT-MT800 SM-RT900 SM-RT800 SM-RT99 SM-RT99-A SM-RT81 SM-RT70 SM-RT26*2
BR-S700 BR-S7000	Resin	-	SM-RT66 SM-RT64
BR-MT410	Resin	Wide	-	RT-CL300 SM-RT30 RT-EM300*1	RT-CL300 SM-RT54 SM-RT30 SM-RT10 RT-EM300*1 SM-RT56 SM-RT26	RT-CL300 SM-RT54 SM-RT30 SM-RT10 RT-EM300*1 SM-RT56 SM-RT26	SM-RT26
BR-T675 BR-M4050 BR-MT5007 BR-M446 BR-MT400 BR-M3050 BR-M375 BR-MT200 BR-M365 BR-M315 BR-TX805 BR-U60307 BR-UR300*7	Resin	Wide	-	-			SM-RT26

Brake caliper	Brake pad material	Pad type	Rotor
Brake caliper	Brake pad material	Pad type	220 mm	203 mm	180 mm	160 mm	140 mm
BR-R92703 BR-R91703 BR-R8170 BR-R8070 BR-R7170 BR-R7070 BR-4770 BR-RS805 BR-R785 BR-RS785 BR-RS505 BR-RS405*8 BR-RS305 BR-RX820 BR-RX820-LE BR-RX810 BR-RX410 BR-RX400	Metal / Resin	Narrow	-	-	RT-CL900 RT-CL800 RT-CL700 RT-MT900 RT-MT800 SM-RT99 SM-RT81 SM-RT70 RT-EM9101 RT-EM9001 RT-EM8101 RT-EM8001 RT-CL3002 SM-RT64 SM-RT542 SM-RT302 SM-RT102 RT-EM6001 RT-EM30012 RT-MT905 SM-RT86 SM-RT76 SM-RT66 SM-RT562 SM-RT26*2	RT-CL900 RT-CL800 RT-CL700 RT-MT900 RT-MT800 SM-RT900 SM-RT800 SM-RT99 SM-RT81 SM-RT70 RT-EM9101 RT-EM9001 RT-EM8101 RT-EM8001 RT-CL3002 SM-RT64 SM-RT542 SM-RT302 SM-RT102 RT-EM6001 RT-EM30012 SM-RT86 SM-RT76 SM-RT66 SM-RT562 SM-RT26*2	RT-CL900 RT-CL800 RT-CL700 RT-MT900 RT-MT800 SM-RT900 SM-RT800 SM-RT99 SM-RT99-A SM-RT81 SM-RT70 SM-RT64 SM-RT26*2
BR-CX77 BR-R317	Metal / Resin	Narrow	-	-	-	SM-RT99 SM-RT81 SM-RT70 SM-RT64 SM-RT86 SM-RT76 SM-RT66	SM-RT99 SM-RT99-A SM-RT81
BR-U5000*3	Metal / Resin	Narrow	-	-	-	SM-RT99 SM-RT81 SM-RT70 SM-RT64 SM-RT86 SM-RT76 SM-RT66	SM-RT500 SM-RT99 SM-RT99-A SM-RT81

*1 Rotor for speed sensor SM-DUE11, rear only

*2 Resin pad only

*3 Not compatible with rear 180 mm rotors

*4 Not compatible with 220mm and 203 mm rotors

*5 For rear only. Not compatible with 220mm, 203 mm and 180 mm rotors.

*6 For rear only. Not compatible 220mm and with 203 mm rotors.

*7 Not compatible with 140 mm rotors.

*8 Please note that the brake kit consisting of BR-RS405, SM-BH59-JK-SSR, and either ST-U6030-R/ST-U6030-L/BL-U6030-L/ST-U4030-R/ST-U4030-L/BL-U4030-L/ST-R4020-R or ST-R4020-L is not compatible with 140 mm rotors.

NOTE

SM-RT56 / SM-RT54 / SM-RT30 / SM-RT26 / SM-RT10 / RT-EM300 / RT-CL300 are compatible with Resin pad caliper specification only. If use with metal pads, rotor will be easily damaged.
When using 140 mm rotor, braking power is less than 160 mm, please confirm the power is enough for your purpose. 140 mm rotor is recommended for rear use only.

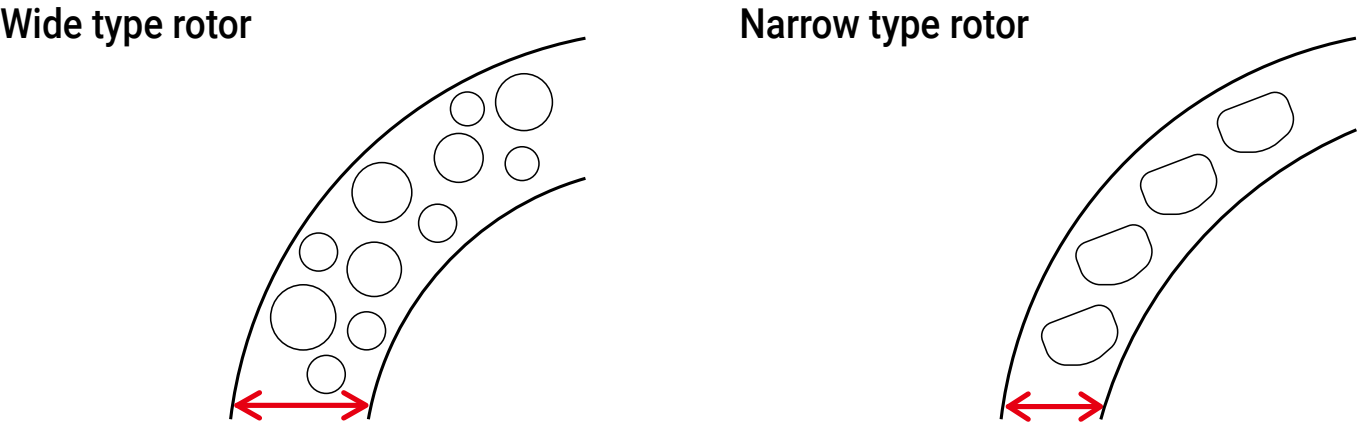

Narrow type 2 piece rotors are not compatible to brake caliper for Wide type rotor because of interference.
BR-UR300 doesn't need front mount bracket and rear adapter.
