shimano

Available combinations of the dropout, sprocket and crankset for designing the frame C-471

Dropout design

A

Reversed (BMX) type, without derailleur hanger

B

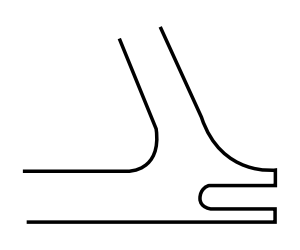

Standard type, without derailleur hanger

C

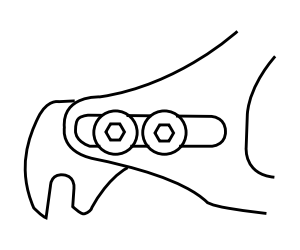

Adjustable disc brake mount / Eccentric bottom bracket

D

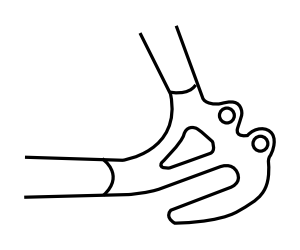

Vertical type, with derailleur hanger

T

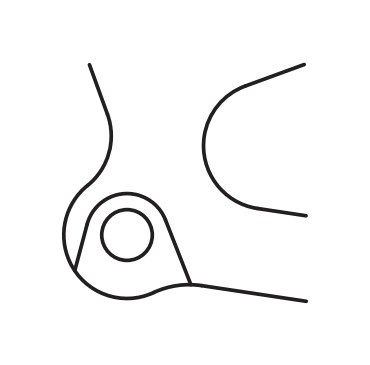

Thru axle type

Compatibility

NR: Not recommend

-

Crankset

E

FC-C6000

-

F

FC-S501: Double guard spec

-

G

FC-S501: Single guard spec

-

K

SM-CRE61 / SM-CRE50

-

CN

H

CN-NX10
CN-HG71, CN-HG40

-

I

CN-E6070-9, CN-E6090-10

-

J

CN-HG71, CN-HG40

-

Series

Speed

Brake type

Dropout
design

Compatibility

Chain
tensioner *5

Sprocket

FC

CN

additional
condition

ALFINE

11S / 8S

Disc brake

A

NR

-

-

-

-

*1

B

NR

-

-

-

-

C

OK

-

SM-GEAR

G

J

-

D

OK

CT-S500

CS-S500

F

I

-

OK

CT-S510

SM-GEAR

G

J

-

V-BRAKE

A

OK

-

SM-GEAR

G

J

-

B

OK

-

SM-GEAR

G

J

-

C

OK

-

SM-GEAR

G

J

-

D

OK

CT-S500

CS-S500

F

I

-

OK

CT-S510

SM-GEAR

G

J

-

NEXUS

8S / 7S

Disc brake

A

NR

-

-

-

-

*1

B

NR

-

-

-

-

C

OK

-

SM-GEAR

G

J

-

D

OK

CT-S500

CS-S500

F

I

-

OK

CT-S510

SM-GEAR

G

J

-

8S / 7S / 3S
(except 3D)

Roller brake
V-BRAKE

A

OK

-

SM-GEAR

E

H

-

G

J

-

B

OK

-

SM-GEAR

E

H

-

G

J

-

C

OK

-

SM-GEAR

E

H

-

G

J

-

D

NR

CT-S500
(except 3s)

CS-S500

F

I

*2

OK

CT-S510
(except 3s)

SM-GEAR

G

J

-

Coaster brake

A

OK

-

SM-GEAR

E

H

-

G

J

-

B

OK

-

SM-GEAR

E

H

-

G

J

-

C

OK

-

SM-GEAR

E

H

-

G

J

-

D

NR

-

-

-

-

*3

NR

-

-

-

-

*4

3D

Disc brake

A

NR

-

-

-

-

*1

B

NR

-

-

-

-

C

OK

-

SM-GEAR

G

J

-

D

NR

-

-

-

-

-

V-BRAKE

A

OK

-

SM-GEAR

G

J

-

B

OK

-

SM-GEAR

G

J

-

C

OK

-

SM-GEAR

G

J

-

D

NR

-

-

-

-

-

5S for E-BIKE

Disc brake

A

NR

-

-

-

-

*1

B

NR

-

-

-

-

C

OK

-

CS-C7000

K

J

-

D

NR

-

-

-

-

-

T

OK

-

-

K

-

*6

Roller brake
V-BRAKE

A

OK

-

CS-C7000

K

J

-

B

OK

-

CS-C7000

K

J

-

C

OK

-

CS-C7000

K

J

-

D

NR

-

-

-

-

-

Coaster brake

A

OK

-

CS-C7000

K

J

-

B

OK

-

CS-C7000

K

J

-

C

OK

-

CS-C7000

K

J

-

D

NR

-

-

-

-

-

*1 Special disc brake mount design is needed.

*2 without chain guard for hub gear side.

*3 Structure of CT-S500 can't transfer chain tension by back pedaling.

*4 Not enough force of fixation against back pedaling power.

*5 Chain tensioners are not compatible with MU-UR510.

*6 Only thru axle type (SG-C7010-5D / SG-C7060-5D) are available.

　 Compatible size of disc brake rotor depends on the type of torque reaction pin.

　 　- Direct type : ø160 or larger

　 　- Mount adapter type : ø180 and ø203
