shimano

ABS compatibility C-715

SHIMANO ABS by Blubrake compatibility C-774

ABS main unit and drive unit compatibility



Wheel speed sensor and rotor compatibility

Compatibility between SHIMANO brake system and BOSCH ABS C-775

Special J-kit for BOSCH ABS system is available.

For BOSCH ABS



Group-1

Group-2

Group-3

ABS mode

Touring / Allroad

Touring

Allroad / Trail / Off

Brake lever

BL-MT200-ABS

BL-MT402-ABS

BL-MT402-ABS

Brake caliper

BR-MT200 (2-piston)

BR-MT420 (4-piston)

BR-MT420 (4-piston)

Brake hose type

BH59
(Special J-kit for BOSCH ABS)

BH90
(Special J-kit for BOSCH ABS)

BH90
(Special J-kit for BOSCH ABS)

Brake pads

B05S (Resin, w/o fin)

D03S (Resin, w/o fin)
D02S (Metal, w/o fin)

D03S (Resin, w/o fin)
D02S (Metal, w/o fin)

Front rotor
(6-bolt type)

SM-RT26 (180 mm)

SM-RT66 (180, 203 mm)

SM-RT66 (203, 220 mm)

Front rotor
(CENTER LOCK type)

SM-RT10 (180 mm)

SM-RT64 (180, 203 mm)
SM-RT30 (180, 203 mm)

SM-RT30 (203 mm)
SM-RT64 (203, 220 mm)

Oil

SHIMANO MINERAL OIL

SHIMANO MINERAL OIL

SHIMANO MINERAL OIL

* Please note that the brake levers compatible with BOSCH ABS has narrower adjustment range of grip distance compared to other levers, and the nominal grip distance is also wider.


For BOSCH ABS Pro



Group-1

Group-2

ABS mode

Trail Pro / Race / Off

Trail Pro / Race / Off

Brake lever

BL-M8200

BL-M9220

Brake caliper

BR-M8220 (4-piston)

BR-M9220 (4-piston)

Brake hose type

BH90
(Special J-kit for BOSCH ABS)

BH90
(Special J-kit for BOSCH ABS)

Brake pads

D03S (Resin, w/o fin)
D02S (Metal, w/o fin)
P03A (Resin, w/ fin)
P04C (Metal, w/ fin)

D03S (Resin, w/o fin)
D02S (Metal, w/o fin)
P03A (Resin, w/ fin)
P04C (Metal, w/ fin)

Front rotor
(6-bolt type)

SM-RT66 (203, 220 mm)

SM-RT66 (203, 220 mm)

Front rotor
(CENTER LOCK type)

RT-CL900 (203 mm)
RT-CL800 (203 mm)

RT-CL900 (203 mm)
RT-CL800 (203 mm)

Oil

SHIMANO LOW VISCOSITY OIL

SHIMANO LOW VISCOSITY OIL

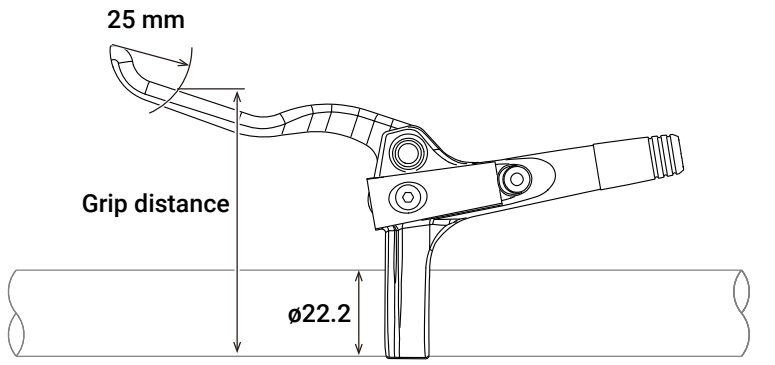

Grip Distance

Please be noted that the Brake Levers compatible with BOSCH ABS has narrower adjustment range of grip distance.

BOSCH ABS model

Brake lever

Grip distance

Min. (mm)

Max. (mm)

ABS Pro

BL-M9220

58

100

BL-M8200

58

100

ABS

BL-MT200-ABS

83

94

BL-MT402-ABS

80

98

Wheel speed sensor mount adapter and rotor compatibility

BS-SS310-C(CENTER LOCK type) SM-RT10SM-RT30SM-RT64RT-CL800RT-CL900 BS-SS310-S(6-bolt type) SM-RT26SM-RT66 Wheel speed sensor
