Disc brake mount adapter C-193

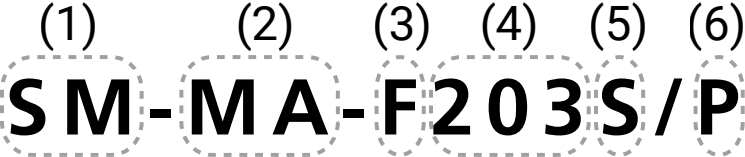

How to read Model No. C-194

(1)

Small parts

(2)

Mount adapter

(3)

F = Front and Rear *
R = Rear

(4)

Rotor size **

(5)

Caliper mount type
S = International A-standard
P = Post
D = Flat mount

(6)

Suspension / Frame type
S = International A-standard
P = Post
D = Flat mount

NOTE

* This part may be used in the rear.
In this case, the rotor size description is also different. Refer to the C-195
** Rotor size descriptions are for the 160 mm direct post mount and International A standard forks and frames. Refer to C-195 for other mount types.

Application table for adapter C-195

For post mount brake caliper

Fork and frame mount type

Rotor size

140 mm (SS)

160 mm (S)

180 mm (M)

203 mm (L)

220 mm (LL)

Post mount

Front

140 mm direct

Direct mount

SM-MA90-F180P/P
SM-MA-F180P/P2
(for R785)

-

-

-

160 mm direct

-

Direct mount

SM-MA90-F180P/P
SM-MA-F180P/P2

SM-MA-F203P/P

-

180 mm direct

-

-

Direct mount

SM-MA90-F203P/PM
SM-MA-F203P/PM

SM-MA-F220P/PM

200 mm direct

-

-

-

SM-MA-F203P/PL2

SM-MA-F220P/PL2

203 mm direct

-

-

-

Direct mount

SM-MA-F220P/PL

Rear

140 mm direct

Direct mount

SM-MA90-F180P/P
SM-MA-F180P/P2

-

-

-

160 mm direct

-

Direct mount

SM-MA90-F180P/P
SM-MA-F180P/P2

SM-MA-F203P/P

-

180 mm direct

-

-

Direct mount

SM-MA90-F203P/PM
SM-MA-F203P/PM

SM-MA-F220P/PM

200 mm direct

-

-

-

SM-MA-F203P/PL2

SM-MA-F220P/PL2

203 mm direct

-

-

-

Direct mount

SM-MA-F220P/PL

International
A-standard

Front

-

SM-MA90-F160P/S
SM-MA-F160P/S

SM-MA-F180P/S

SM-MA-F203P/S

-

Rear

SM-MA90-R140P/S

SM-MA90-R160P/S
SM-MA-R160P/S

SM-MA90-R180P/S
SM-MA-R180P/S

SM-MA-R203P/S

-

Flat mount
ø140/160

Front

SM-MA-F140P/D

SM-MA-F160P/D

-

-

-

Rear

SM-MA-R140P/D

SM-MA-R160P/D

-

-

-

Flat mount
ø160/180

Front

-

-

-

-

-

Rear

-

-

-

-

-

For flat mount brake caliper

Fork and frame mount type

Rotor size

140 mm (SS)

160 mm (S)

180 mm (M)

Flat mount

ø140/160

Front

With Y8N230000* on product

With Y8N230000* on product

-

Rear

Direct mount

SM-MA-R160D/D

-

ø160/180

Front

-

With Y8N230000* on product

With Y8N230000* on product

Rear

-

Direct mount

SM-MA-R160D/D

Flat mount
BR-UR300

ø140/160

Front

-

Direct mount

-

Rear

-

Direct mount

-

ø160/180

Front

-

-

Direct mount

Rear

-

-

Direct mount

* SHIMANO easy flip-flop bracket system which allow 1 bracket to be compatible with 2 rotor size.
